Camera Monitor System

ProViu® Mirror

Better visibility with digital wing mirror

First fully-integratable off-the-shelf camera monitor system that substitutes the classic wing mirror with images in HD quality.

Discover our ProViu® Mirror Camera Monitor System

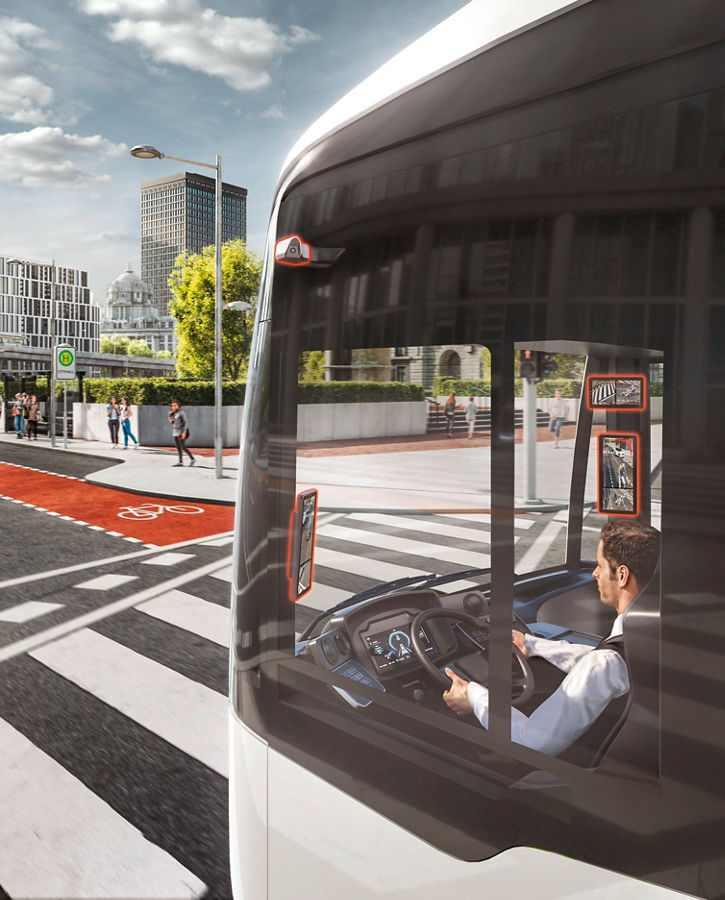

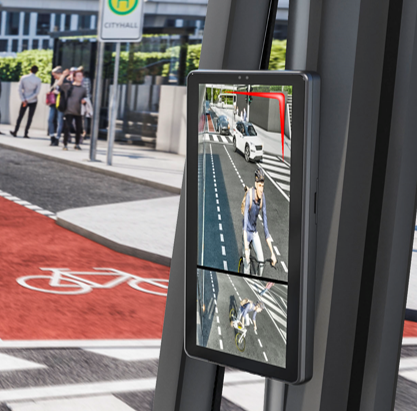

Bus drivers and other commercial vehicle operators need good visibility of what is going on around their vehicles. In the rain or sunshine, in the dark or during the day, when pulling up at busy bus stops or reversing with overhanging trailers. And especially the blind spots give all road users a headache. The camera monitor system ProViu® Mirror with its purely digital, one-camera system can perfectly substitute the classic wing mirror classes II/IV/V and VI with homogenous images in HD quality and ensures perfect visibility and increased safety at all times.

ProViu® Mirror does not just improve blind spot detection and all-around visibility, but is especially geared towards increasing vision in wet and dark conditions without having to worry about dirty or stained mirrors. It even suppresses high beam lights at nights, easing the strain on drivers’ eyes.

As a the first purely digital camera monitor system using the LDVS technology, ProViu can achieve a high frame rate and image resolution and therefore also accommodate driver assistant features like reverse mode, turn assist or distance lines.

Furthermore, drivers can enjoy reduced of ownership since repair costs are low and the lack of a physical wing mirror on the vehicle’s outside with better aerodynamics leads to better fuel efficiency and less noise.

The benefits of the ProViu® Mirror Camera Monitor System at a glance

  • State of the art: First LVDS camera monitor system to substitute wing mirrors in commercial and special vehicles
  • Image quality: 3-megapixel HDR camera with 60fps frame rate ensures the best image quality even in poor lighting conditions
  • Simplicity: One camera system for mirror class II/IV
  • Safety: Blind spots are eliminated and enable safe and easy maneuvering in confined spaces
  • Robustness: even in challenging working environments like agriculture or construction
  • Size:  small components enable better integration on the vehicle
  • Costs:  Low repair and damage costs compared to classic wing mirrors
  • Flexibility:  modular camera monitor system that can be used on different vehicles and is easily installed and calibrated using a configuration tool.
  • Temperature:  heated cameras in cold temperatures
  • Options:  display sizes available in 12.3″ and 14.5”, mirror class V and VI optionally available, displayed together on one display or on 2 separate 10.1″ displays

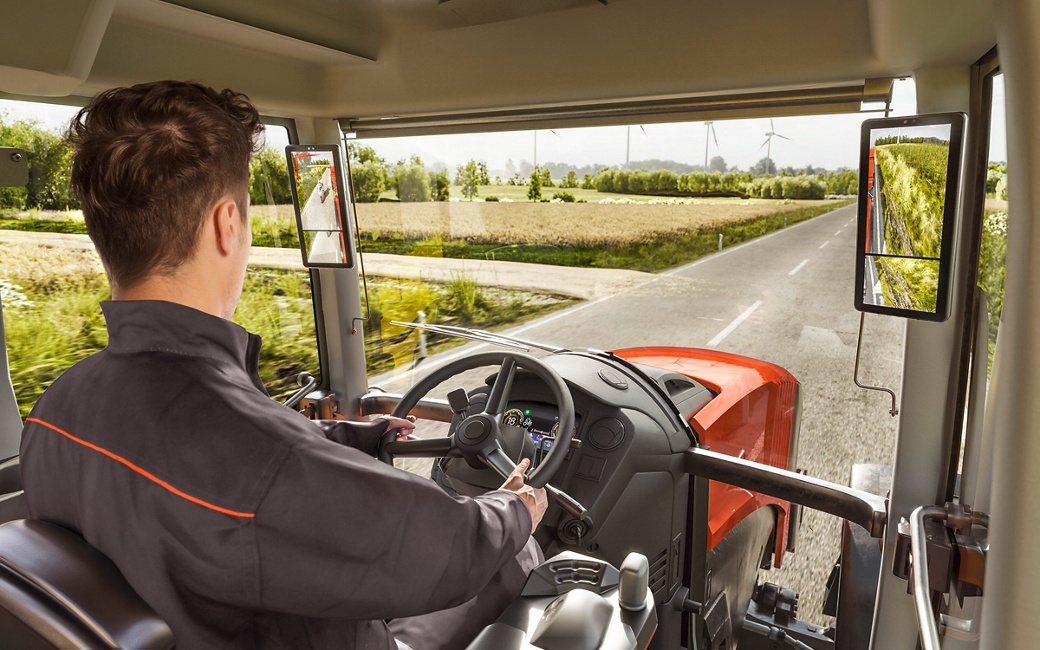

Tractor inside cabin view
Tractor with proviu mirror

Technical Specifications

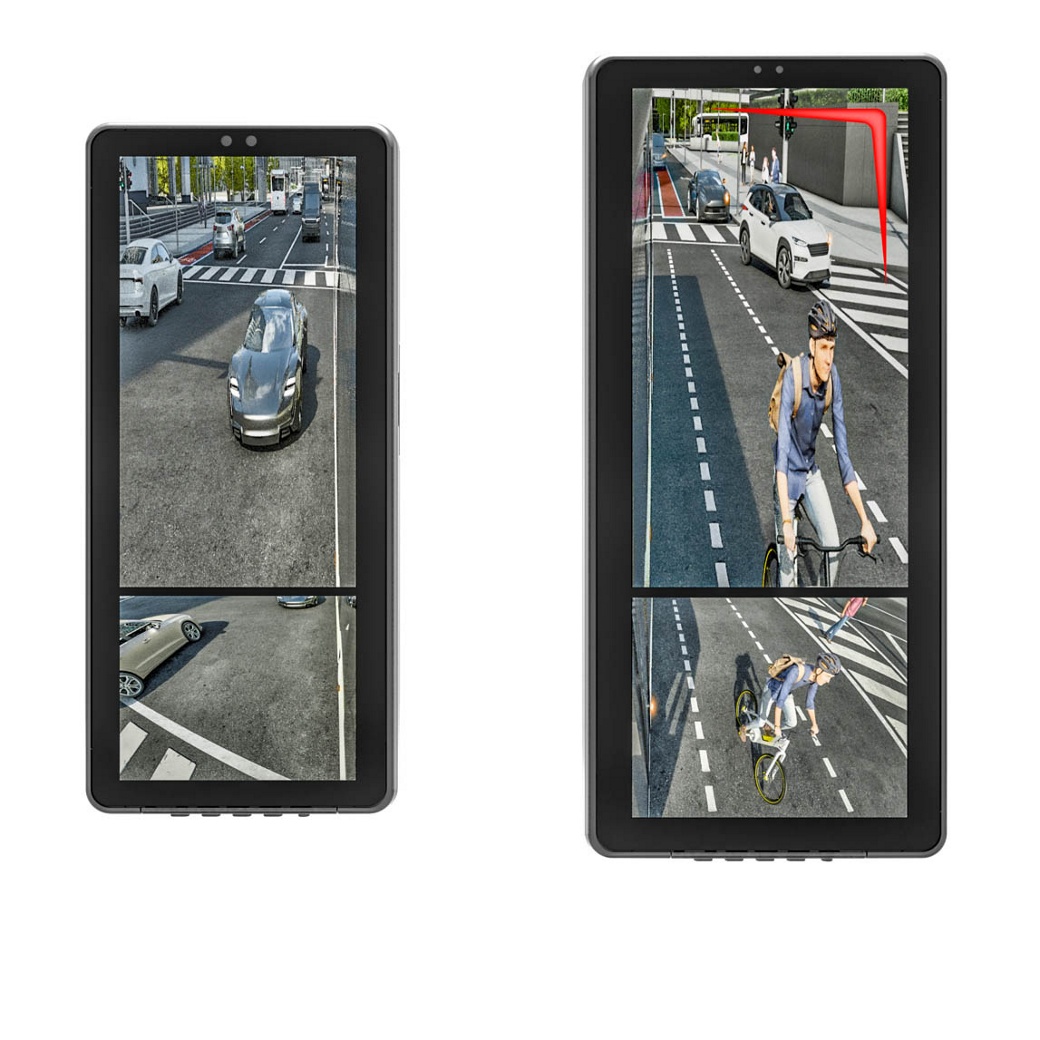

Display images

Size
12.3″ or 14.5″

Viewing angle up/down, left/right
typ. 88 degrees, minimum 80 degrees

Brightness
min. 800 cd/m²

Contrast ratio
1000:1

Display ratio
8:3

Resolution
1920 x 750 pixel (RGB)

Frame rate
60 fps

Power supply
9-32V

Operating temperature
-30 to -70 °Celsius

Storage temperature
-40 to -85 °Celsius

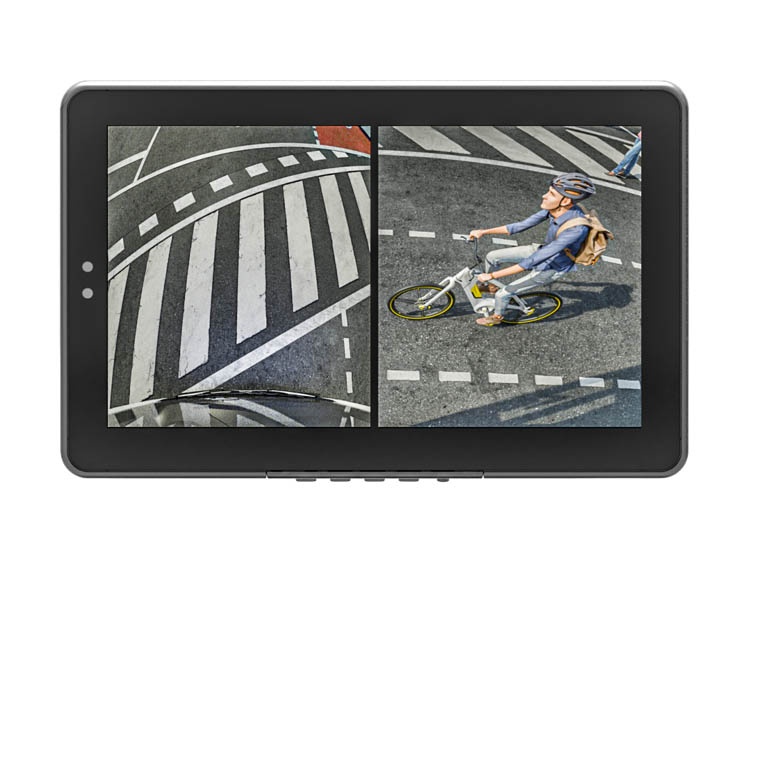

Display view

Size
10″

Viewing angle up/down, left/right
typ. 88 degrees, minimum 80 degrees

Brightness
min. 800 cd/m²

Contrast ratio
1000:1

Display ratio
16:9

Resolution
1280 x 720 pixel

Frame rate
60 fps

Power supply
9-32V

Operating temperature
-30 to -70 °Celsius

Storage temperature
-40 to -85 °Celsius

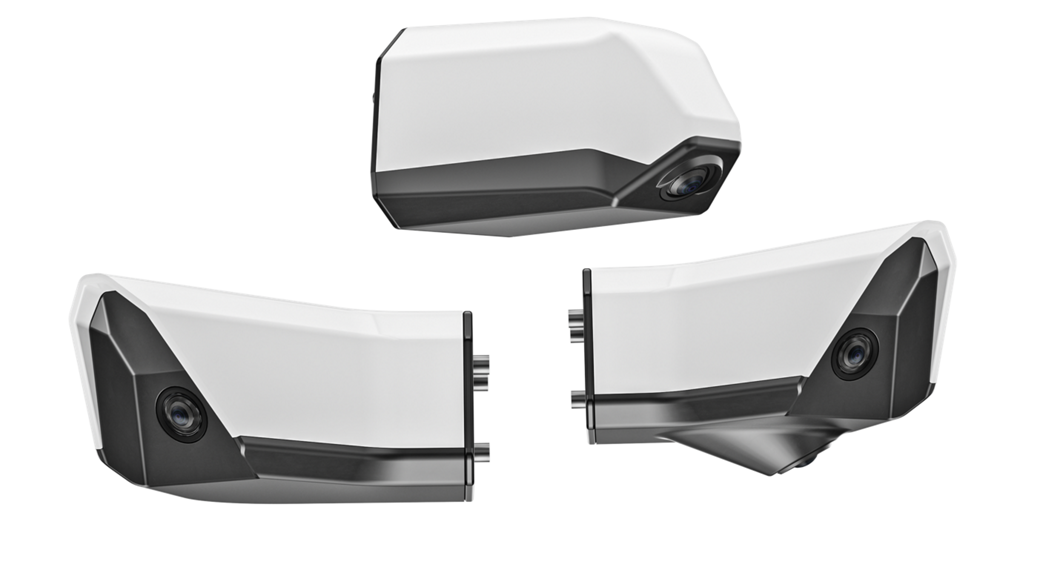

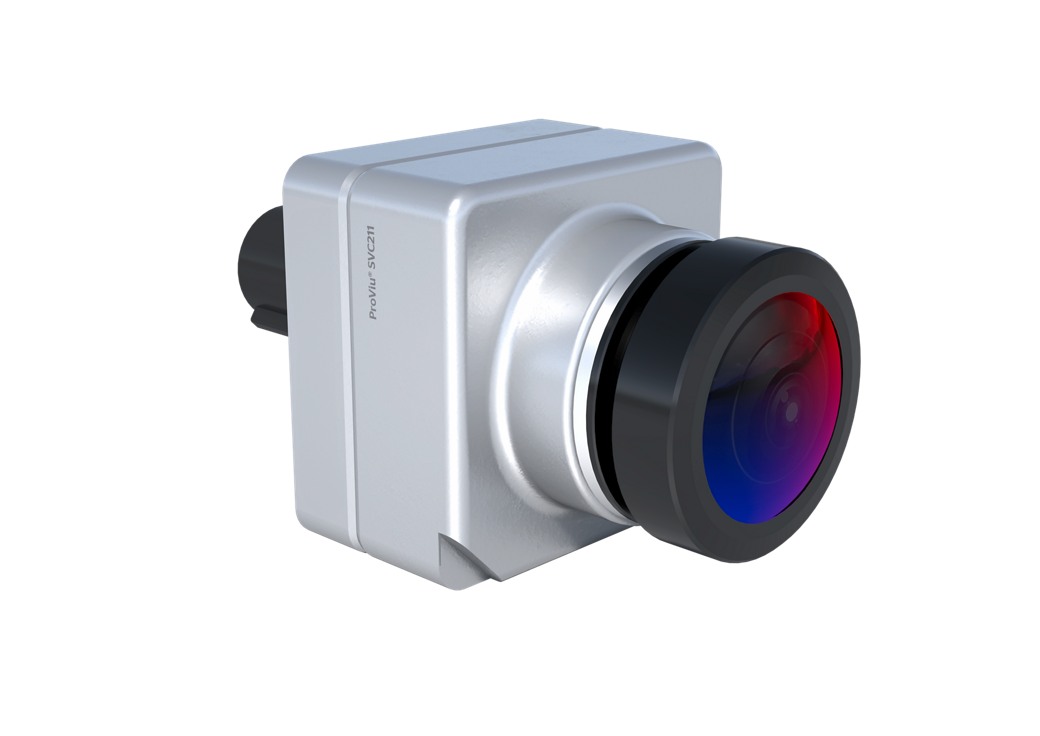

Camera devices

Resolution
1920 x 1536 pixel

FOV
H*V>90°*68°(Before distortion correction)(II/IV)
H*V>100°*80°(Before distortion correction)(V/VI)

Frame rate*
60 fps

Dynamic rate
120db

Operating and Storage temperature
-30 to -78 °Celsius

*If class V and VI are used on one screen the frame rate for class VI is reduced to 30fps.

Additional Features

The camera monitor system automatically adjusts the screen brightness based on ambient brightness detected by light sensing. The driver can adjust base brightness level to his liking.

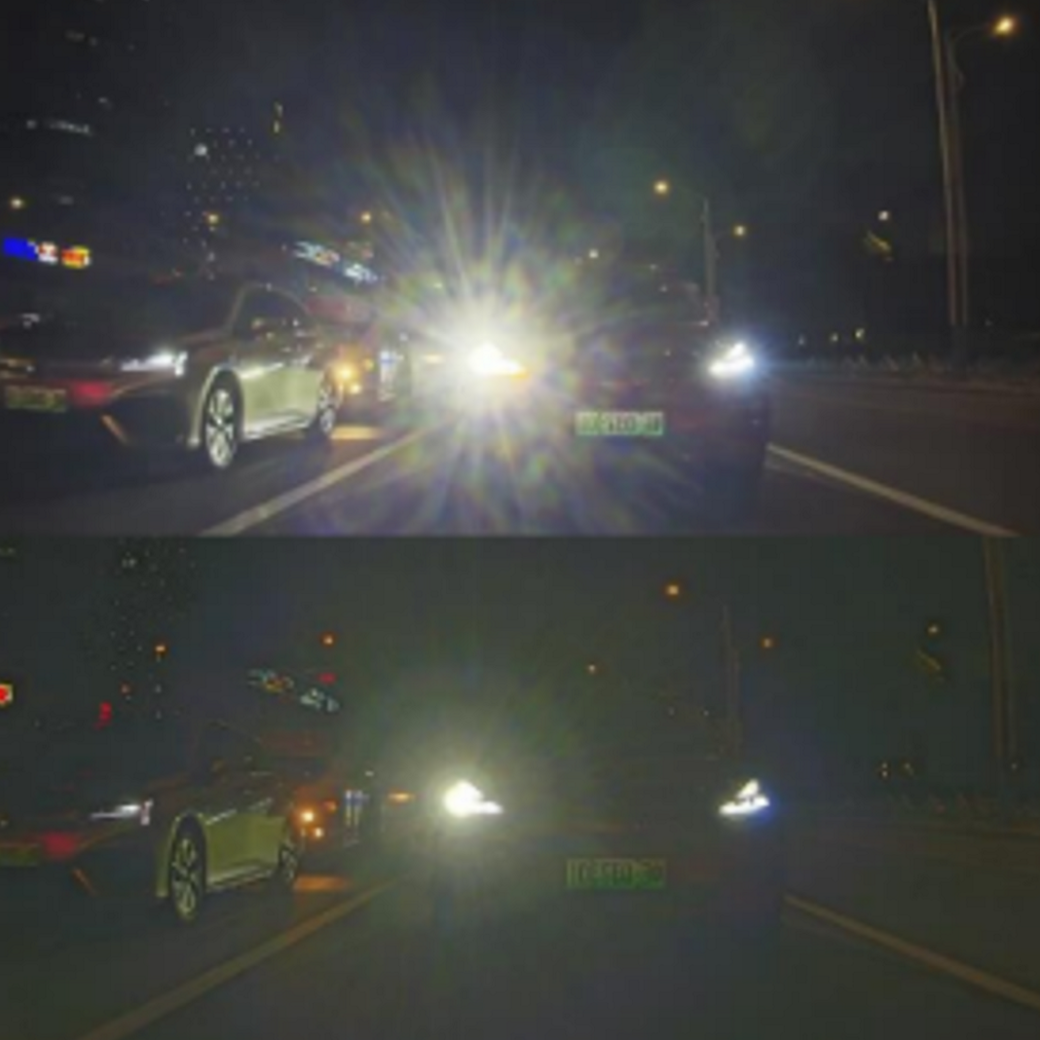

In scenarios with strong lights or back lights, the camera monitor system is able to highlight bright and dark parts while retaining detail.

HDR Image

The camera monitor system suppresses LED flicker to ensure image clarity.

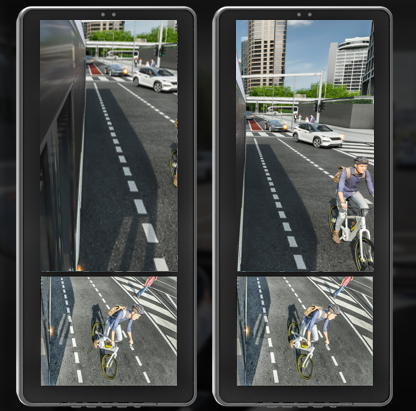

The display range can be adjusted through the buttons to meet the different needs of users.

Display angle adjustment

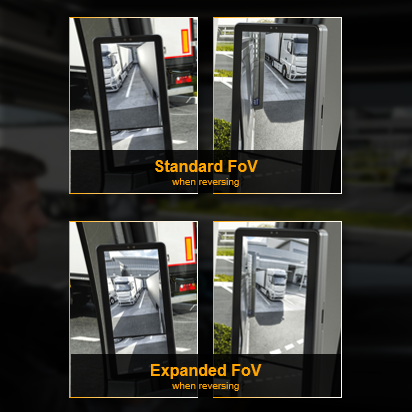

When receiving a reverse signal, the camera monitor system’s image extends downwards to improve parking visibility and show park assist line.

Parkassist pic

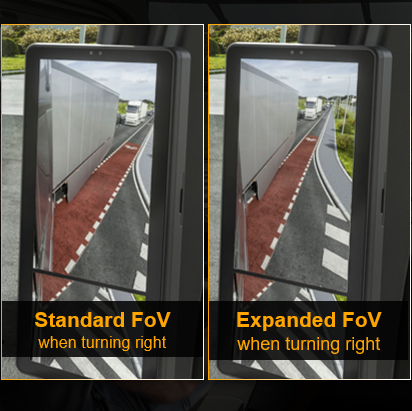

When receiving a turn signal, the camera monitor system automatically expands the field of vision on the turning side and the camera turn signal lights up automatically.

Turn assist

A BSIS or Blindspot detection can be send by CAN to the camera monitor system and will be displayed on the driver monitors.

BSIS picture

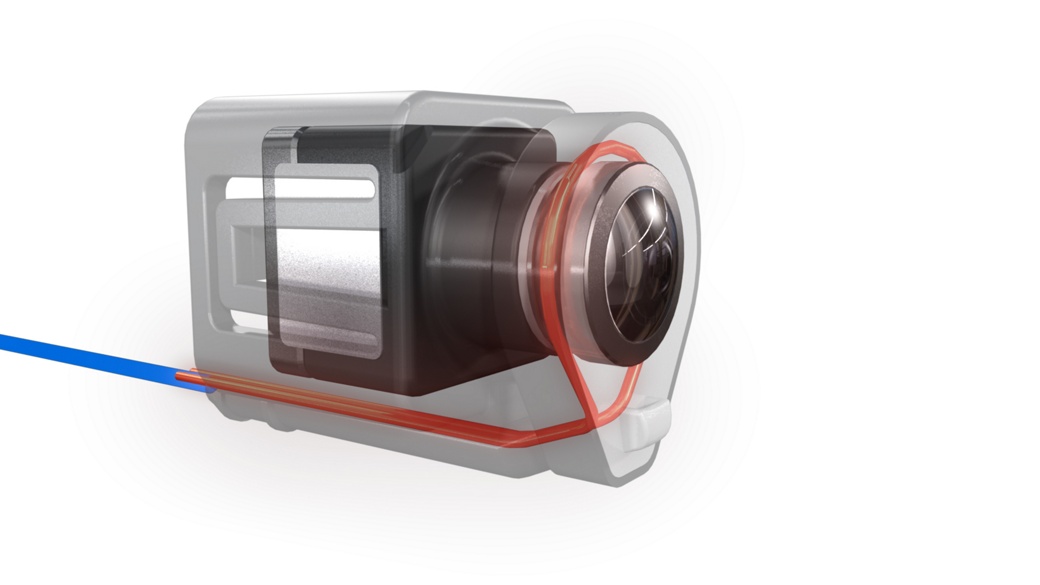

The camera module is equipped with a built-in heating pad to reduce the impact of rainy, icy, and snowy environments on the image

Defrosting Camera device
