    Intelligent battery sensor for commercial vehicles (IBS CV)

    The shunt-type IBS continuously analyzes the status of either 1 conventional 12-volt lead-acid battery (12 V system) or 2 conventional 12-volt lead-acid batteries in series (24 V system).


    The sensor provides information on such key parameters as the State-of-Charge, State-of-Function (power ability) and State-of-Health (aging) of the battery.

    Benefits and features

    • Enables reliable engine stop/start function to reduce fuel consumption by 2 to 5 grams of CO₂ per kilometer (WLTP)
    • Supports measures which extend battery life (intelligent alternator/DC-DC control)
    • Helps to avoid vehicle breakdowns by early warning of battery failure and abnormal board net consumption
    • Provides the battery’s State-of-Charge (SOC), State-of-Function (SOF) and State-of-Health (SOH)
    • Variants available for 12 V or 24 V and EU or US battery

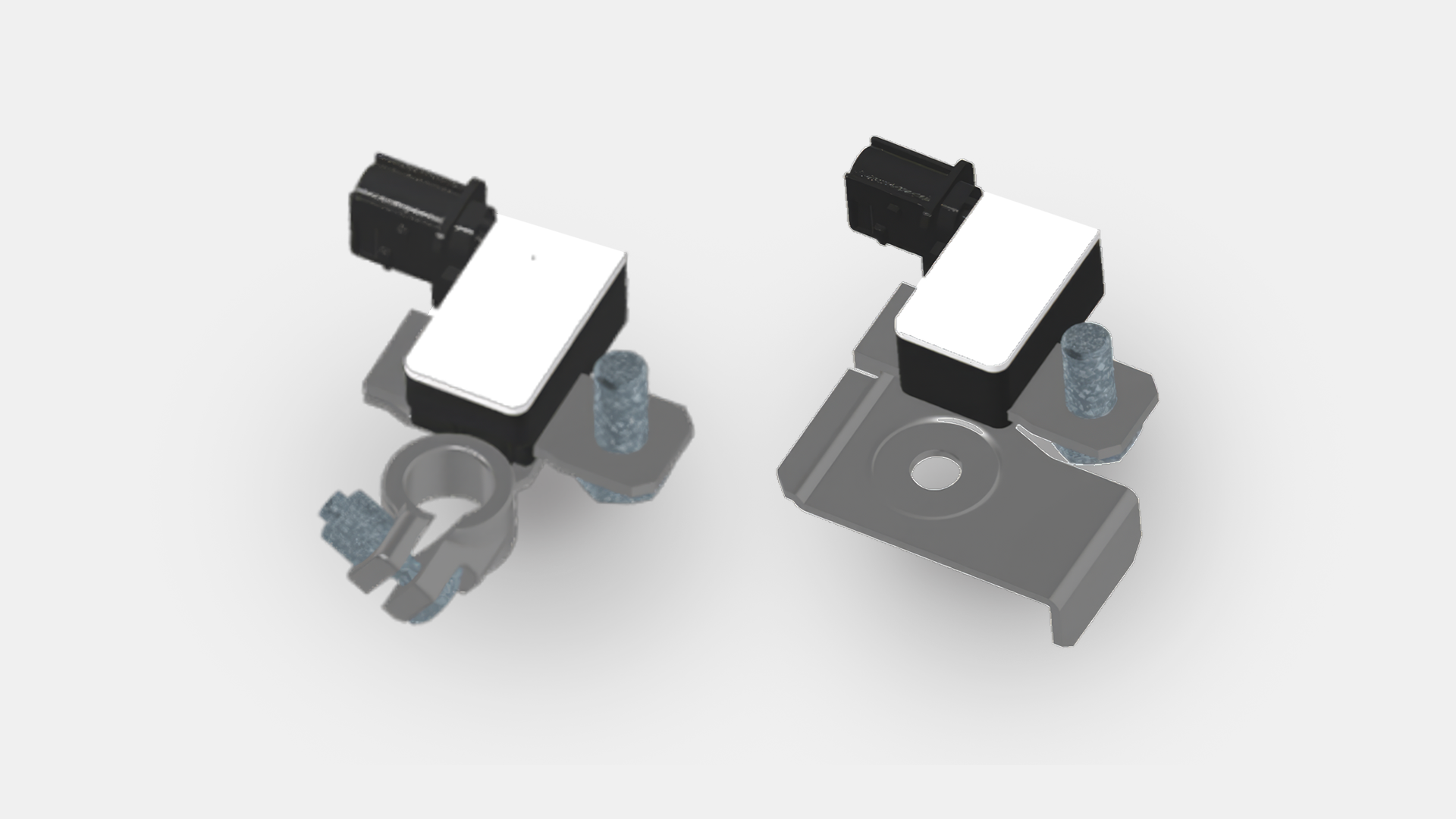

    Intelligent battery sensor for commercial vehicles (IBS CV)
    Intelligent battery sensor with cable

    Technical data

    • Measurement range voltage: 12 V: 5 V to 18 V / 24 V: 6 V to 32 V
    • Measurement range current: -2,000 A up to +2,000 A
    • Accuracy SOC: ±7 %
    • Accuracy SOH: ±10 %
    • Accuracy SOF: ±500 mV
    • Operating temperature: -40 °C up to +85 °C
    • LIN communication
    • ASIL B certified
