Electronic Brake Systems

Our portfolio of electronic brake systems provides high performance braking, as well as stability, always. Furthermore, AUMOVIO develops modular and scalable Future Brake and Motion Control Systems. We ensure the safest way for control of a vehicle’s motion and speed, by processing large amounts of extrinsic and intrinsic sensor signal inputs during the complex process of “braking”.

At AUMOVIO, we prioritize safety as the foundation and pave the way for brake and motion technologies for the future. Integrated and connected electronic brake and suspension systems enable dynamic driving, high comfort, and sustainable mobility – whether sporty or automated.

Even in unexpected situations, these systems ensure maximum safety through predictive features like brake preconditioning for shorter stopping distances and adaptive air suspension for rough roads. The result: a safe, comfortable, and dynamic driving experience.

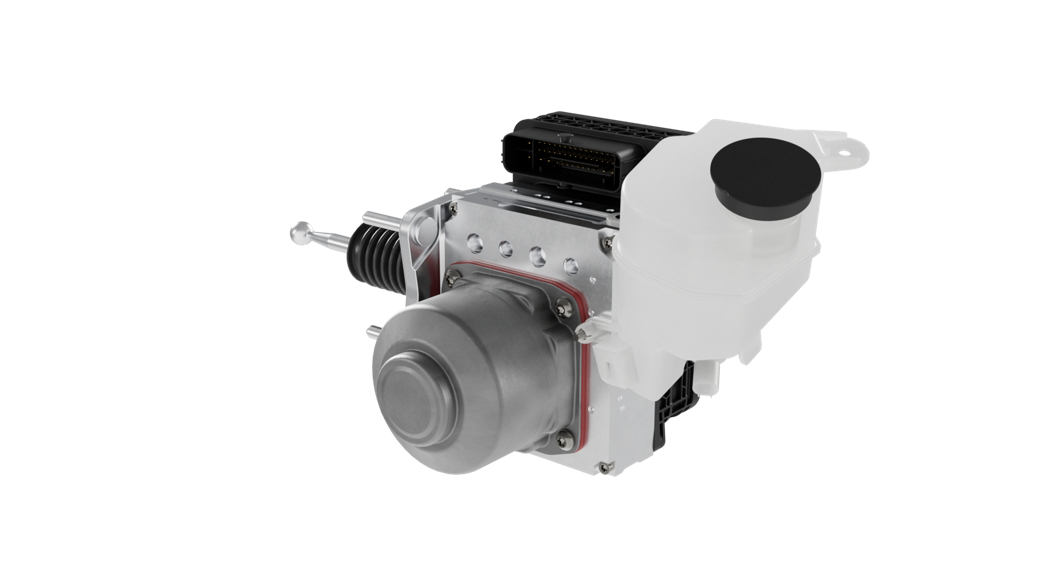

MK C2

Our Integrated Braking Technologies (IBT)

MK C2 is the second-generation one box brake system and has been in series production since 2022.



The system integrates the master cylinder (MC), brake booster and control systems (ESC and normal braking) into a single compact and lightweight module. MK C2 is built upon Multi-logic Architecture, which increases the functionality and availability of the system.
  • Reduction of 5g of CO² per km according to WLTP testing, when compared to a conventional system
  • Innovative architecture supports use of true low drag calipers, further decreasing emissions
  • 100% efficient regenerative braking system
  • Multi-logic architecture supports parking-pawl removal from the transmission and Valet Parking
  • Simplified design allows reduction in size, weight, and number of components compared to MK C1
  • Significantly faster buildup of autonomous braking pressure than conventional hydraulic systems
  • Reduced logistics and installation effort during car production
  • Box volume: approx. 4.3 dm³
  • Weight: approx. 4.7 - 5 kg (depending on variant)
More details

MK 120

Our Conventional Braking Technologies (CBT)

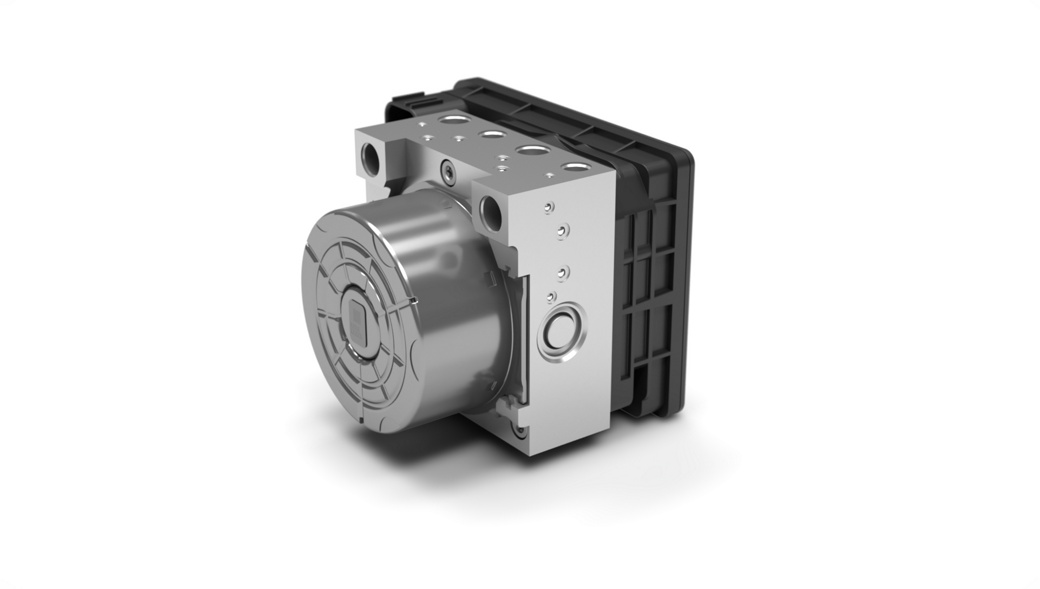

MK 120 Base
MK 120 Base
MK 120 HighPlus
MK 120 HighPlus

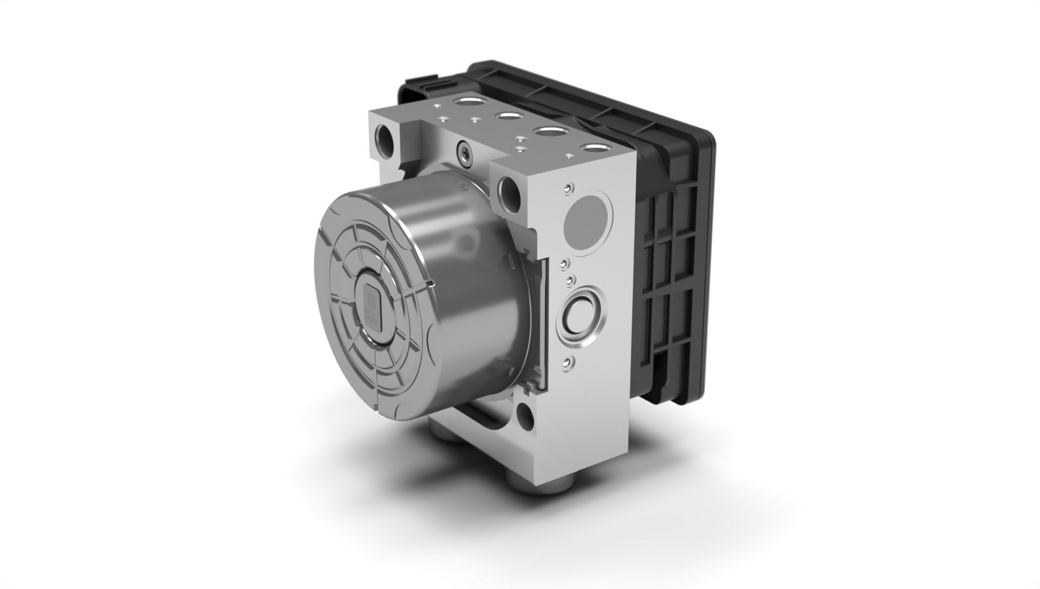

MK 120 Hybrid
MK 120 Hybrid

New generation of electronic brake system for Electronic Stability Control Systems (ESC).


This is AUMOVIO's new generation of conventional electronic brake system, which is highly efficient, offers cyber security features and over-the-air (OTA) functionality, and can be easily installed in the vehicle.


The MK 120 family continues the product line of ESC systems with an up-to-date construction kit for all kinds of car platforms.
  • State-of-the-art ESC system
  • Reduced box volume & weight
  • Scalable hydraulic performance for autonomous emergency braking
  • Support of vacuum and electric brake boosters
  • Family concept with common port layout and fixation concept
  • Driver assistance functions supported with standard unit
  • Low-speed assistance functions supported with 2nd generation dampening system
  • Regenerative braking with reduced residual pressure
  • High level of integration ability (IMU, Park Brake, …)
  • Cyber Security and Flash-over-the-Air supported
  • Box volume: approx. 1.2 dm³
  • Weight: approx.  1.8 kg
More details

Related topics


Motorcycle Braking Technologies

AUMOVIO brings advanced safety to two wheels. Based on our tried-and-tested passenger car ABS technology, our electronic brake systems for scooters and motorcycles enhance active safety across all classes.

Learn more

Brake System Roadmap

With digitalization and connectivity, electric drives and AD capabilities, brake systems must therefore fulfill a broad number of additional tasks. To this end, AUMOVIO, as a long-standing, globally proven brake system specialist, is developing brake system technologies: The Brake System Roadmap

Learn more

Drive-Brake Unit (DBU)

The Drive-Brake Unit is an efficient and low cost Wheel Hub Motor with an integrated brake.

Learn more

Calipers

Our hydraulic and electric caliper porfolio include mechanical, electromechanical and full electrical solutions for different use-cases.

Learn more

Actuation

We offer customer-specific, robust and attractively priced brake actuation systems from our modular concept. All actuation components originate from our modular system and can be individually combined with each other as needed.
