- Generic/multi use application
- Private CAN with Specification from Continental
- Restricted use cases
- Off the shelf available
Industrial Radar Sensor Portfolio
- Industrial Radar Sensors
- Special Application Sensors
- Automotive Radar Sensors
- Development for special market & use case
- Generic or customer CAN interface
- To full fill use cases or
- ECE regulations (RightViu® for R151)
- Available with add. R&D effort
- Special developed for OEM’s
- Communication via CAN J1939 and special customized
- Specific use case like highly automated driving
- R&D adaptations needed (signal for vehicle structure)
RADAR stands for Radio Detection And Ranging System
- Electromagnetic system to detect the distance and location of objects
- Works on the principle of reflection with radio waves using the Doppler effect and time to fly
- Waves are transmitted through space onto the object
- The radio waves are radiated via an antenna attached to the transmitter
- Advanced Range Radar (ARS) for front and back side looking
- Short Range Radar (SRR) for side looking and blind spot detection

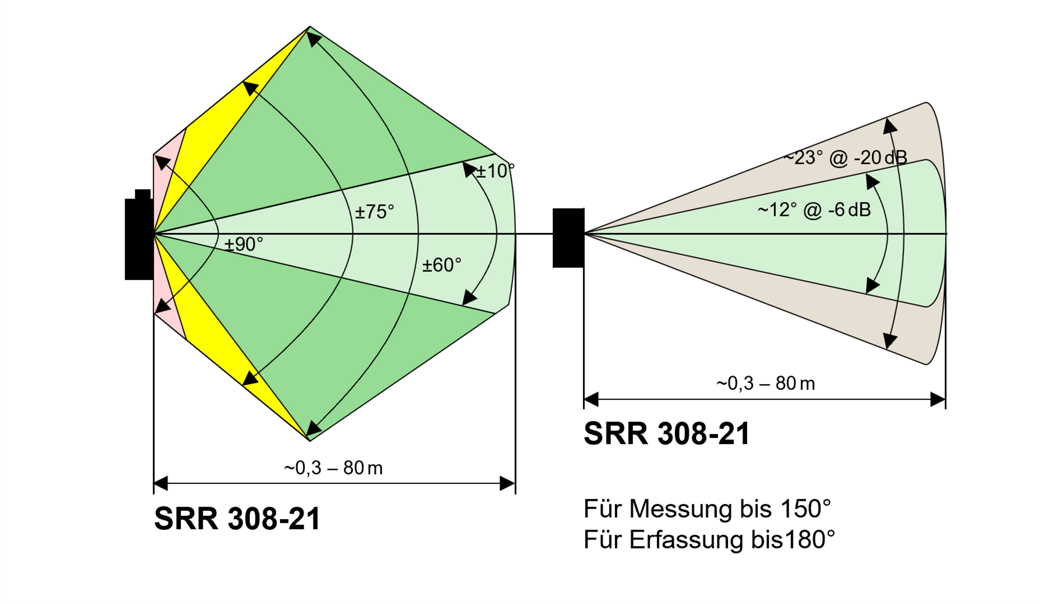

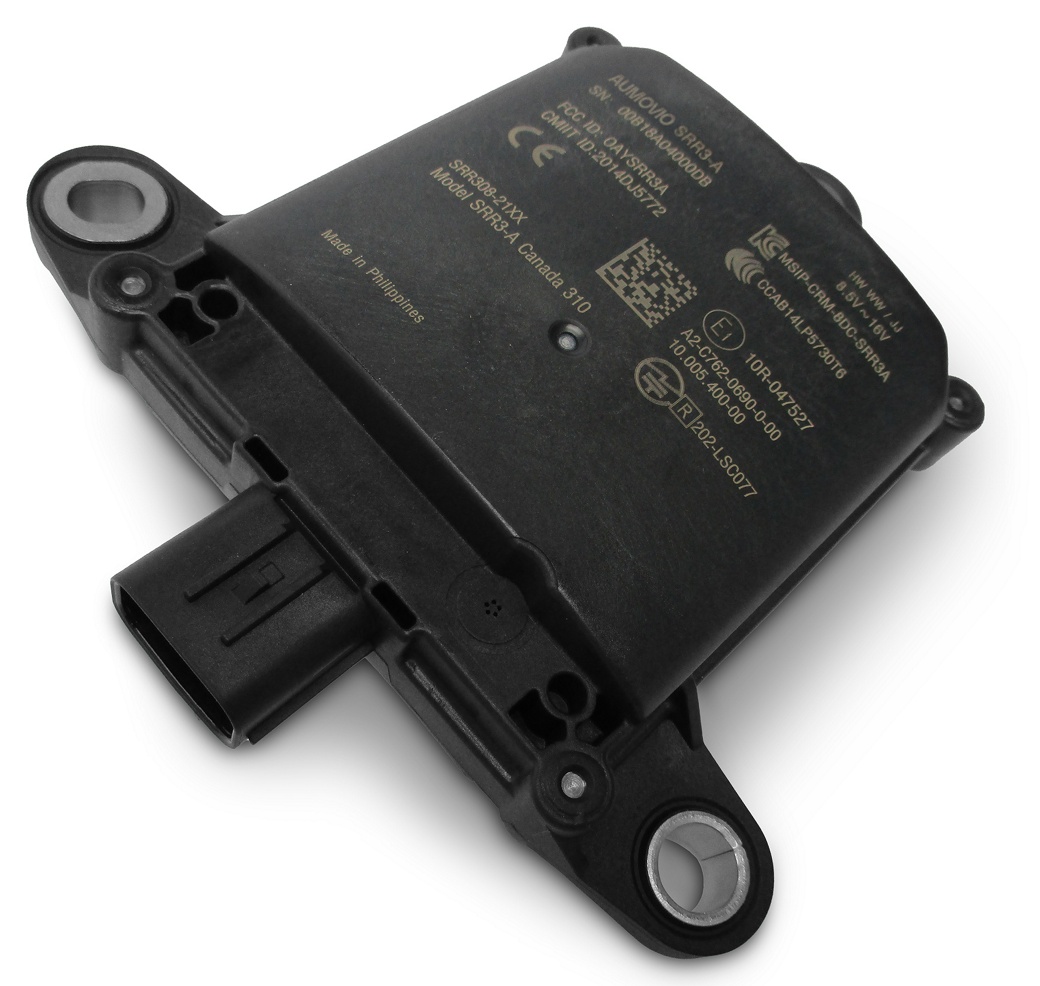

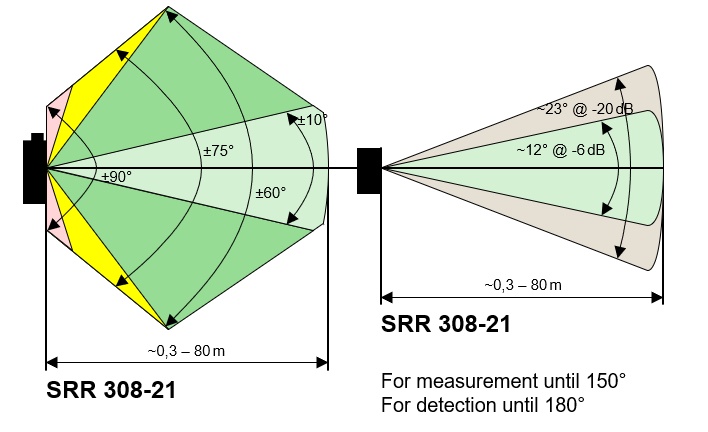

SRR 308
- 12 V + converter to 24V
- High speed CAN bus
- 0,3 - 80 m, max ± 90°
- Speed range ± 146 km/h
- Elevation angle 16°
- Collision warning for
any vehicles or moving (construction) machines - Side looking sensor
for mid distance field - All around view/detection for vehicles
and other devices - Object detection in poor visible areas
(blind spots)
- Robotics: Collision avoidance, surround view
- Railway Technology: Collision avoidance, free
space indication - Construction Machines: Collision avoidance, surround view

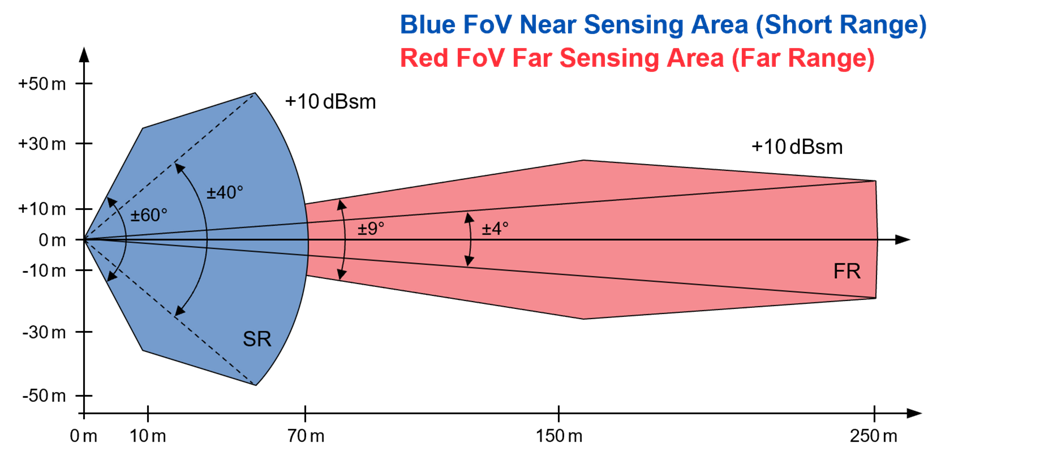

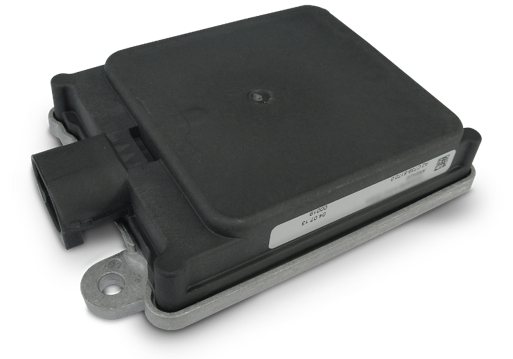

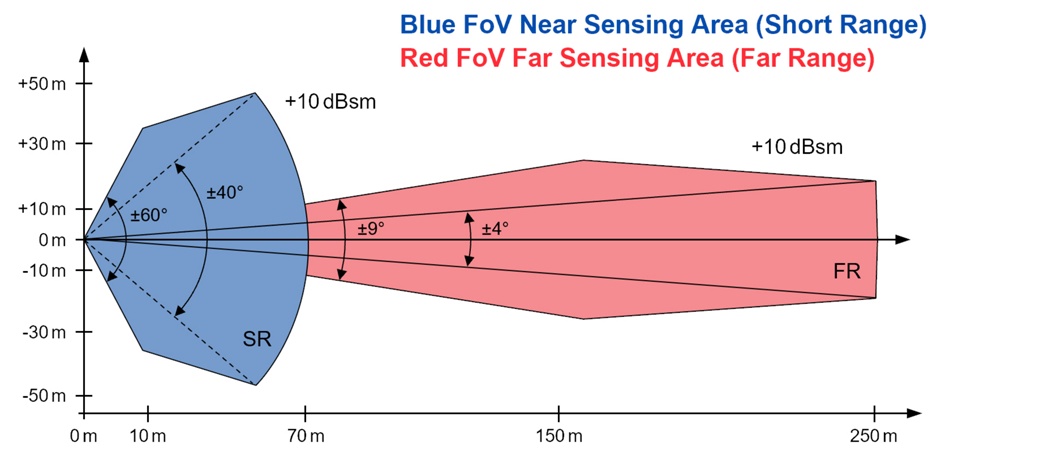

ARS 408 (Advanced Radar Sensor)
- 12V / 24 V
- 0,2 – 250m, ±4°
- 0,2 – 70m, ±40°
- CAN interface
- Elevation angle 20°
- Collision warning for
any vehicles or moving (construction) machines - Front looking sensor
for wide range (any vehicles) - Region based object detection up to 8
regions can be defined - Area monitoring system for far field or
non accessible areas - Object detection, for poor visible areas (blind spots)
- Traffic Technology: Traffic tech. + cross walk +
pedestrian - Special Vehicles: Distance control, aircraft de-icer
- Mining: Collision avoidance, blind spot detection

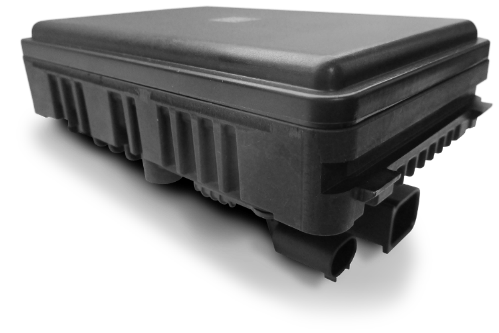

ARS 548
- 12 V + converter to 24V
- BroadR-Reach Ethernet
- 0,2 - 300 m, max ± 70°
- Speed range ± 200 km/h
- Elevation angle ± 20°
