The image shows a truck on a highway as an example of the AUMOVIO tolling solutions. Empowering tolling providers with all the necessary information and management tools to create, deploy and run successful road user charging schemes.

Tolling Solutions

We offer the full range from single tolling products to end-to-end solutions.

We empower tolling providers with all the necessary information and management tools to create, deploy and run successful road user charging schemes.

Discover Tolling Solutions

CRUS Services

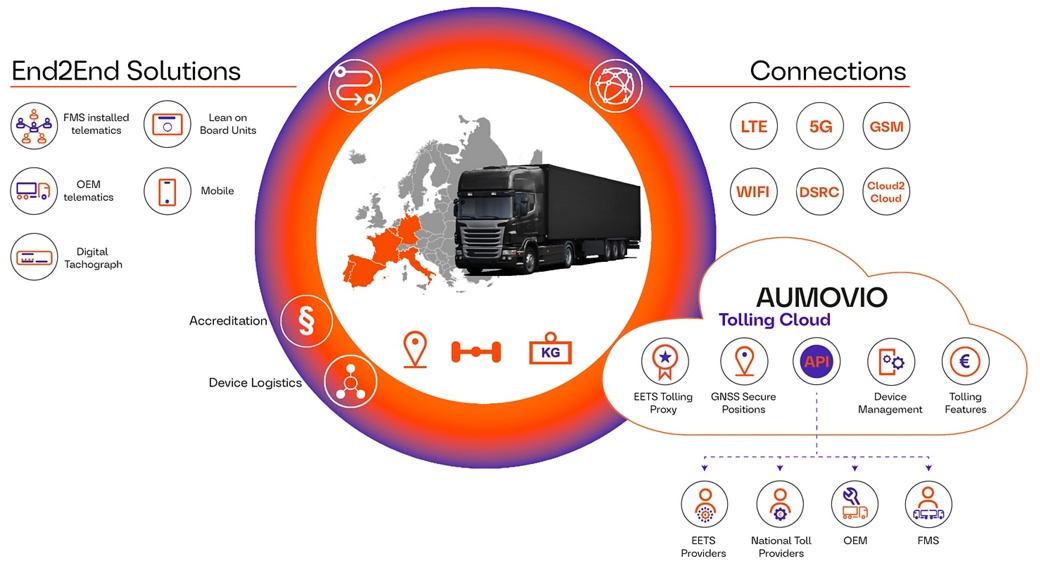

Overview graphic of AUMOVIO's end-to-end tolling solutions. AUMOVIO’s Distributed Tolling Solution makes use of the existing On-Board Equipment (OBE) for the tolling of the future.

Discover our Distributed Tolling Solutions

End-to-end solution around fully EETS-compliant OBU.

In modern commercial vehicles, software as well as electronic and electric architecture (E/E) is taking over tasks from dedicated hardware units. AUMOVIO’s Distributed Tolling Solution makes use of the existing On-Board Equipment (OBE) for the tolling of the future. Ath the core is the smart tachograph which delivers precise GNSS sensor data and also contains a DSRC modem that can also be used for tolling purposes. Making the smart tachograph one of the main components of a distributed OBE solution significantly improves security level and manipulation safety. And even for exchanging the data with the AUMOVIO Tolling Proxy Cloud, the smart tachograph can be brought online through the plug-and-play solution VDO Link.

The benefits of a Distributed Tolling Solution

  • Future-safe and expandable solution
  • Increased quality and simpler logistics
  • Reduced costs
  • Increased security
  • Ready for the EU Mobility Package
  • Enables other value-added services
Illustration of connected trucks on a smart highway using AUMOVIO's cloud-based tolling and digital services. The image shows modern freight vehicles communicating via 5G and IoT technology, enabling seamless border crossing and automated toll collection in a futuristic city environment.

All you need are three things:

Illustration of AUMOVIO's smart tachograph DTCO 4.1. The new smart tachograph (2nd version), which will be mandatory for the entire European commercial vehicle fleet used in cross-border transport above 2.5 tons, becomes the supplier of trusted vehicle data that can also be used for tolling.

DTCO 4.1

The latest tachograph as required by the EU Mobility Package

Illustration of a DSRC Antenna A dedicated short-range antenna - standard with DTCO 4.0 or later.

DSRC Antenna

A dedicated short-range antenna - standard with DTCO 4.0 or later

Illustration of the VDO Link, a plug-and-play solution that, in combination with the DTCO 4.1 smart tachograph from AUMOVIO, makes DTCO data available to third parties.

VDO Link

A plug & play solution that makes the DTCO data available to third parties

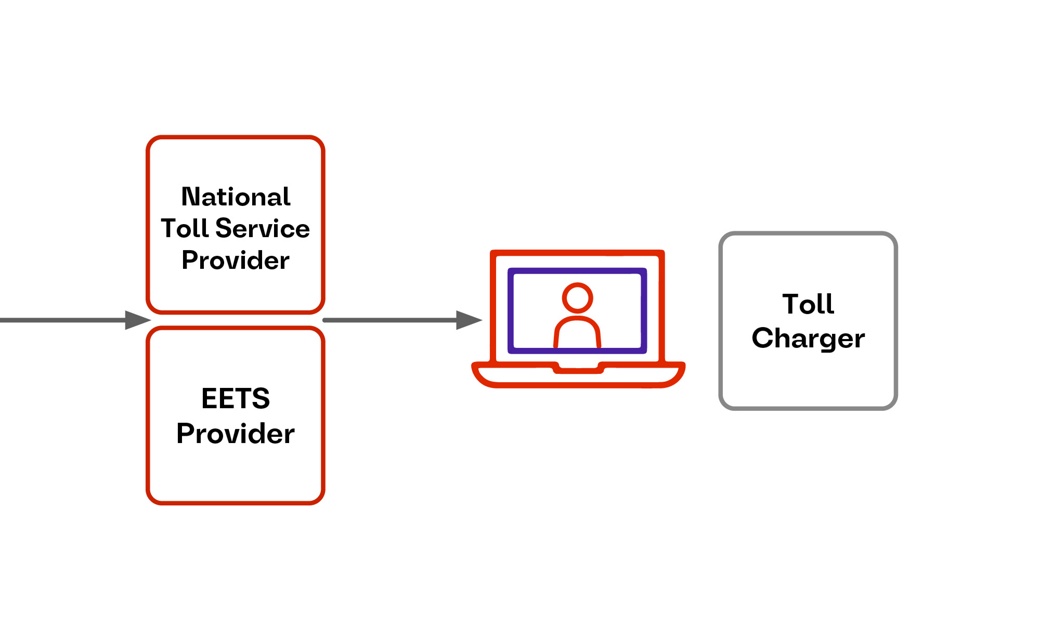

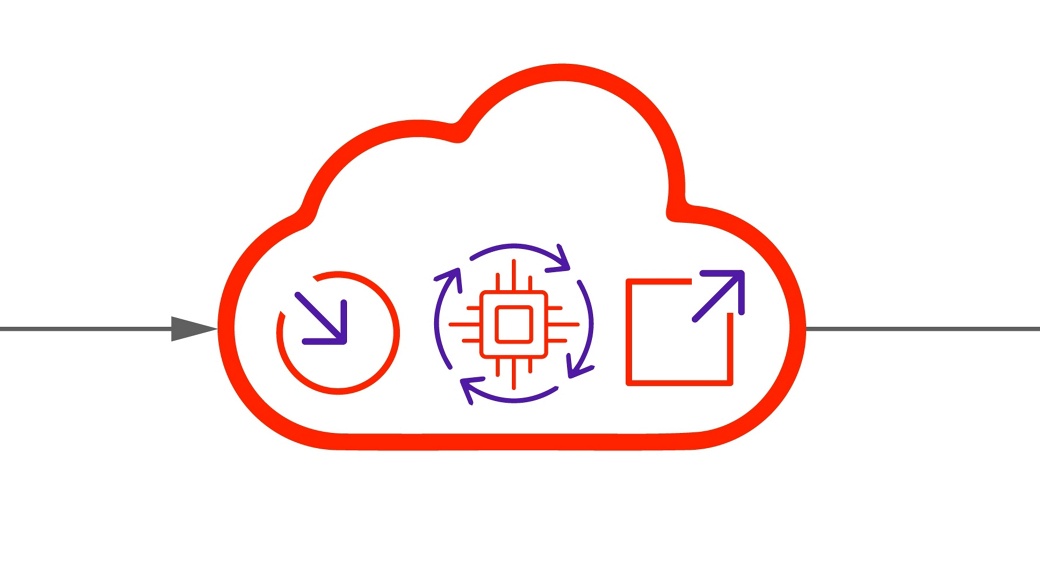

Our Proxy Cloud does the rest:

Icon for AUMOVIO Tolling Proxy. Collect, process and share.

AUMOVIO Tolling Proxy

Collect / Process / Share

Icon for AUMOVIO EETS Readiness, operations and certification.

EETS Readiness

Operations / Certi

Smart Tachograph DTCO 4.1

The new smart tachograph (2nd version), which will be mandatory for the entire European commercial vehicle fleet used in cross-border transport above 2.5 tons, becomes the supplier of trusted vehicle data that can also be used for tolling. It is the first industrial application implementing the secured GNSS functionality and therefore is the enabler for smart tolling.

Features

  • Supports ITS interface requested by the regulation
  • Bluetooth technology (low energy)
  • New GNSS (Global Navigation Satellite System) receiver in order to support the OS-NMA (Open System Navigation Message Authentication) Galileo Authentication
  • New internal 3rd motion sensor (in addition to KITAS and GNSS) to detect if the vehicle is moving
  • New high-precision internal clock provides the required accuracy for the new GNSS receiver
  • Security controller SLI37: Latest generation of security controller with improved performance and sufficient memory to fulfil the requirements of updated Annex 1C.
  • Application controller: Powerful application controller with lager internal memory space to meet the software update requirements out of the new regulations

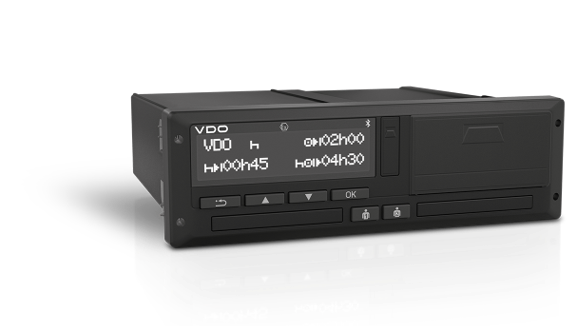

Product picture of the DTCO 4.1 (2nd generation) smart tachograph from AUMOVIO. The new smart tachograph, which will be mandatory for the entire European commercial vehicle fleet used in cross-border transport above 2.5 tons, becomes the supplier of trusted vehicle data that can also be used for tolling.

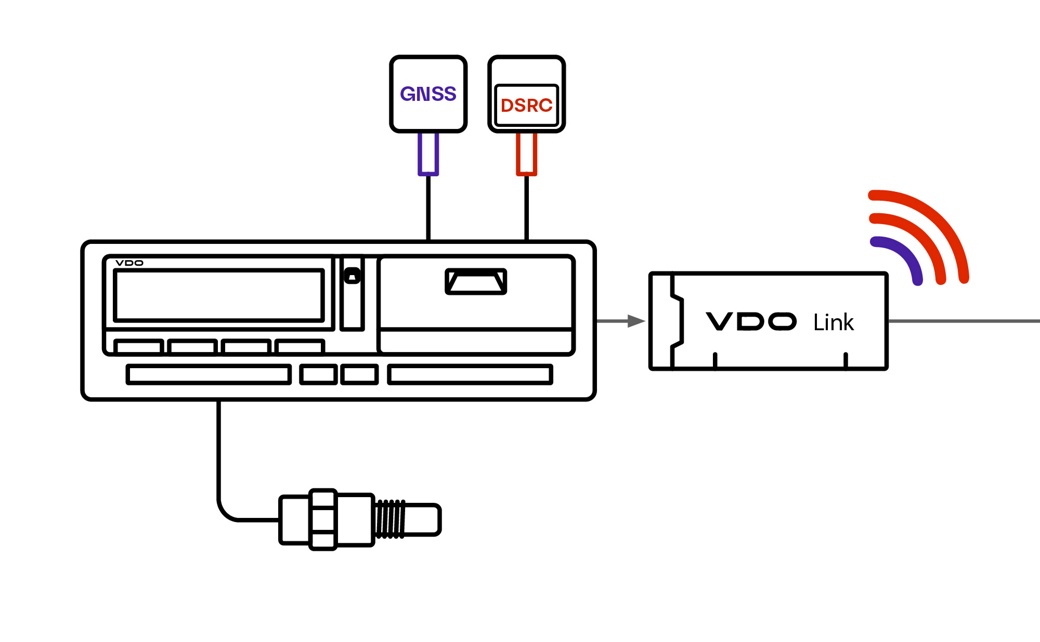

Illustration of AUMOVIO's smart tachograph DTCO 4.1 and VDO Link, a plug & play solution that makes the DTCO data available to third parties.

Capability

  • Secure speed source and 3 sources of movement
  • Secure and accurate positioning with GNSS & OSNMA
  • DSRC Antenna fulfilling 5.8 Ghz
  • CE/RED Certified
Illustration of AUMOVIO's integration options for the DTCO 4.1 smart tachograph (2nd generation). It is OEM & aftermarket in-vehicle connectivity ready, and integration with Tolling Proxy for a full EETS front end is also possible.

Integration

  • OEM & Aftermarket in-vehicle connectivity ready
  • Integration with Tolling Proxy for a full EETS Front End

Speed & Competitiveness

  • Better compatibility with vehicle
  • Certification/Accreditation complexity reduction
  • Lower TCO for end-users

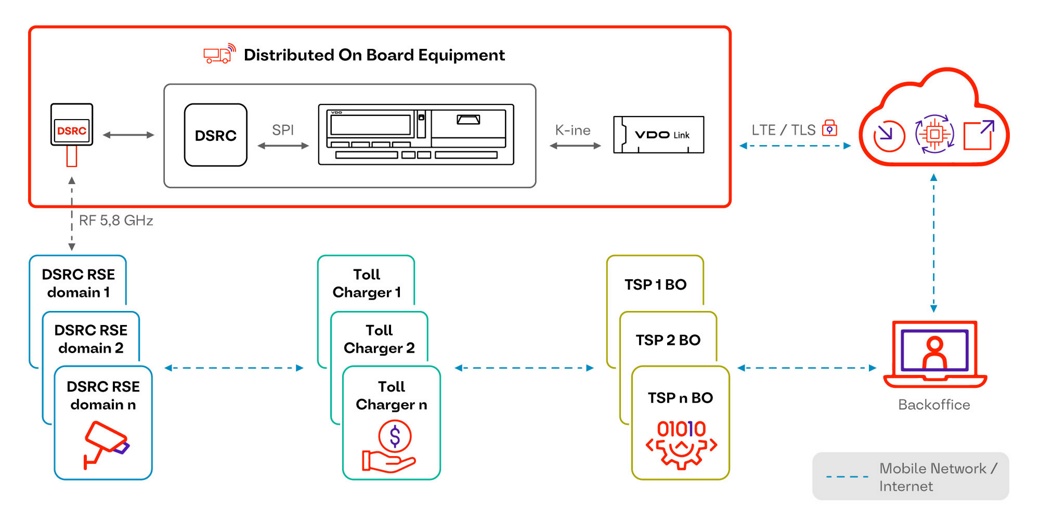

Overview graphic of AUMOVIO's distributed on-board equipment. AUMOVIO’s Distributed Tolling Solution makes use of the existing On-Board Equipment (OBE) for the tolling of the future. Ath the core is the smart tachograph which delivers precise GNSS sensor data and also contains a DSRC modem that can also be used for tolling purposes.

Telematic and Tolling Device as Plugin for DTCO

The VDO Link closes the gap between smart tachographs and online platforms for fleet management. The plug-and-play solution is the first of its kind, allowing tachograph data to be retrieved and processed in real-time from a distance – without the need for permanently installed telematics modules in the vehicle.

Thanks to its open interface concept, the tachograph data can be used also for tolling and other use scenarios and value-added services.
  • Plug-and-play solution by using DTCO front connector
  • HMI: 2LEDs for diagnostics. Tolling HMI via DTCO 4.1 display, buttons and buzzer
  • High sensitivity multi GNSS receiver. GPS / Galileo / GLONASS / BeiDou. Assisted GNSS
  • LTE CAT module with internal antenna
  • For tolling: Use of DTCO internal DSRC
  • HSM: Integrated security module for high end security concept
  • Possibility to update software and firmware over the air
  • Backup battery for supporting peak current and for necessary operation after plug off
  • eSIM
  • Device consists of main body and adaptor

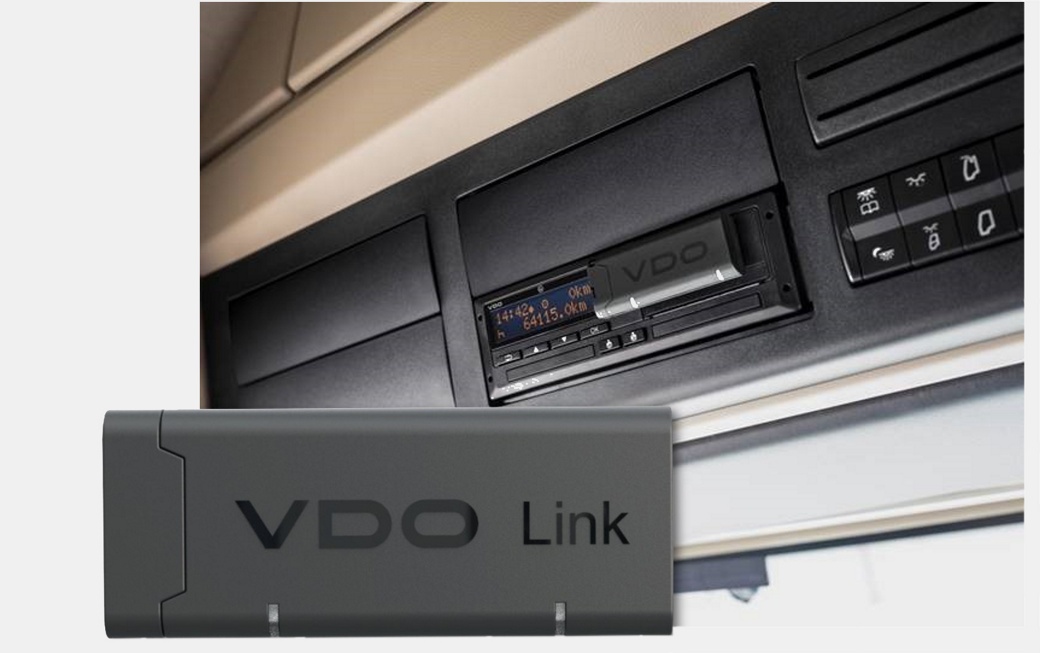

Product photo of the VDO Link and illustration showing it in use together with the DTCO 4.1 smart tachograph. This plug-and-play solution is the first of its kind, allowing tachograph data to be retrieved and processed in real-time from a distance – without the need for permanently installed telematics modules in the vehicle.
  • Secure debug interfaces
  • Secure boot, secure update
  • Secure Key and certificate storage
  • Secure cloud communication
  • Crypto-Accelerator
  • PKI infrastructure
Product photo of the VDO Link and illustration showing it in use together with the DTCO 4.1 smart tachograph. This plug-and-play solution is the first of its kind, allowing tachograph data to be retrieved and processed in real-time from a distance – without the need for permanently installed telematics modules in the vehicle.

Discover our Integrated Tolling Solutions

End-to-end solution around fully EETS-compliant OBU.

Leave the times of numerous tolling boxes in the cockpit behind: AUMOVIO’s Integrated Tolling Solution can be deployed in any commercial vehicle and seamlessly blends into the vehicle architecture. With a single state-of-the-art OBU 5+, the powerful AUMOVIO Tolling Proxy Cloud and the necessary certificates for EETS operation, it paves the way into a reliable and smooth tolling future.

Tolling On-Board Unit 5+ – a fully EETS-compliant OBU

At the heart of AUMOVIO’s Integrated Tolling solution is the Tolling On-Board Unit 5+ – a true plug-and-play device that needs no installation. It provides valuable data used for tolling like move, zone, or standstill detections, logging, events and many more. Running on 4G technology (and a 2G fallback system) and supported by the latest GNSS module with an accuracy of less than six meters, it provides Europe-wide coverage. The tried-and-tested DSRC module fulfill all standards required and has undergone homologation in Austria, Germany, Italy, Slovenia, Switzerland, France, Spain, Portugal, Belgium and NW.

The features of the Tolling OBU 5+ at a glance

  • Configuration
  • OTA on all modules
  • Power Modes
  • Positioning
  • Standstill detection
  • System times
  • USB Service interface
  • Geofencing
  • DSRC
  • Logging
  • Self Test
  • HMI Toll Domain detection
  • Security

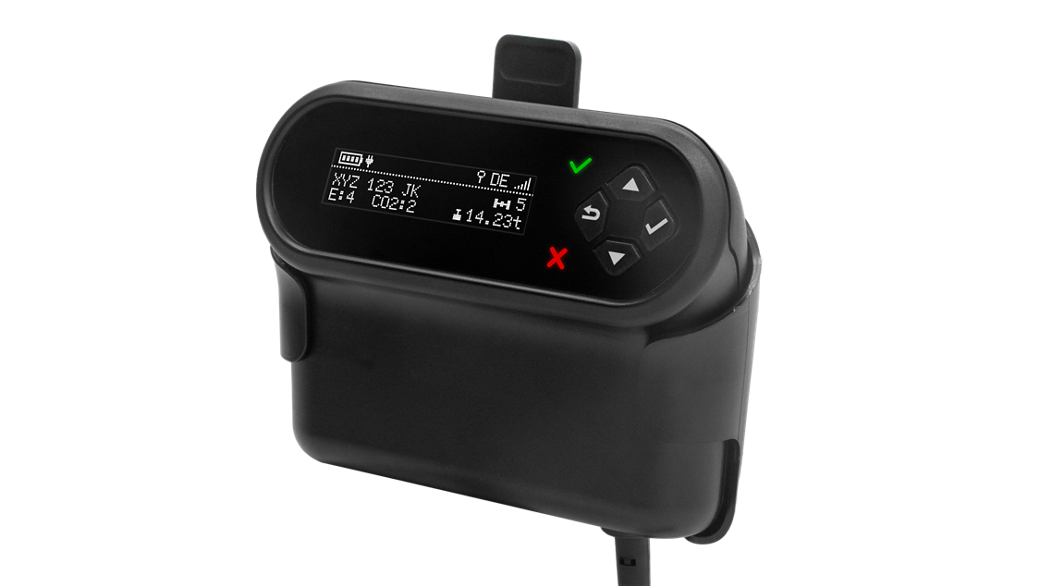

Product image of the Tolling On-Board Unit 5+, a true plug-and-play device that needs no installation. It provides valuable data used for tolling like move, zone, or standstill detections, logging, events and many more.
Icon for LTE connections
Icon for bluetooth connections
Icon for MFF2 connection
Logo of the European Global Navigation Satellite Systems Agency

Tolling Cloud Proxy – The Brain Behind Modern Tolling

In addition to state-of-the-art hardware, AUMOVIO offers a future-proof, scalable turn-key solution to manage tolling devices in the field. The AUMOVIO Tolling Cloud Proxy is based on a modular SOA architecture that includes base services and APIs like over-the-air updates, remote configuration or device management, but also offers tolling-specific components like DSRC management, zone geometry or charge reports. By using the AUMOVIO Tolling Cloud Proxy, fleets Be compatible with latest toll standards and requirements from European Toll domains!

Scalable Tolling Proxy Service.

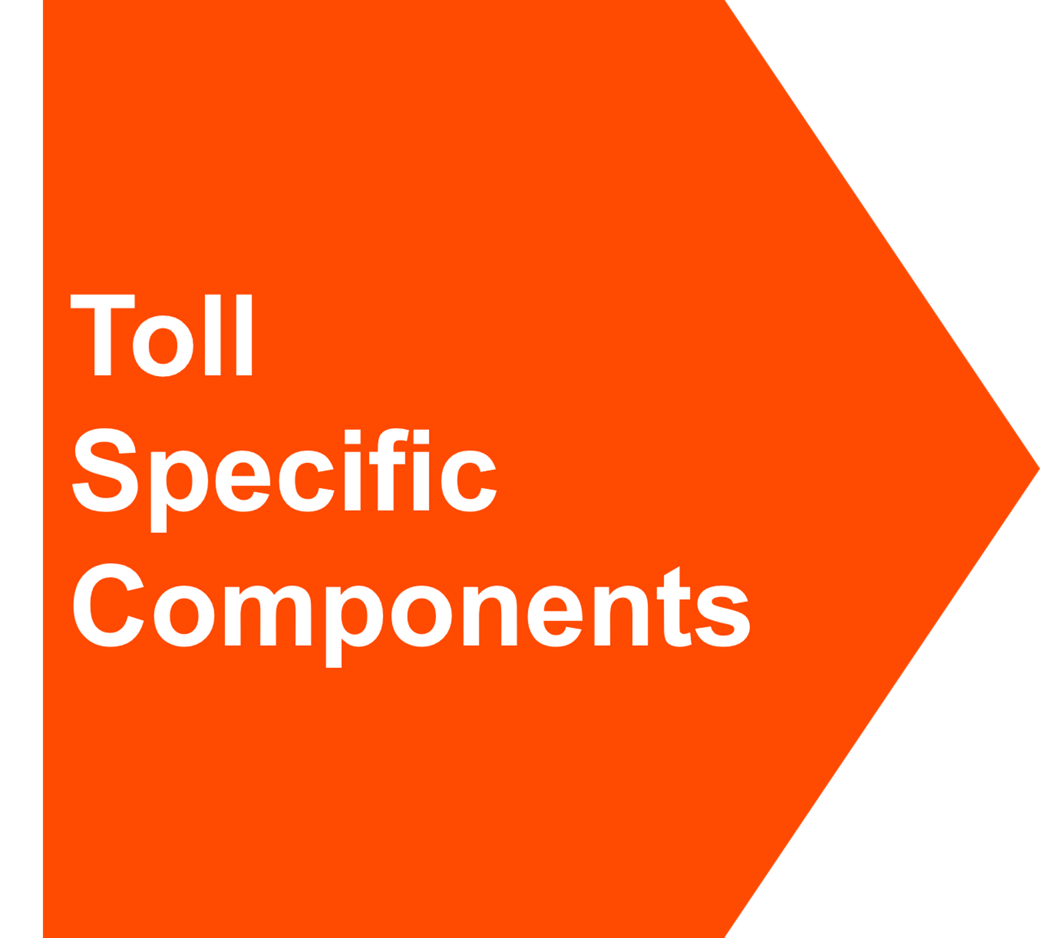

Illustration of an orange toll specific components arrow
  • DSRC Management
    DSRC Template loaded in the Proxy
    DSRC Template sent to devices as personalization
    TSP create DSRC instances and assign them to zone rules
  • Zone Geometry
    Dynamic update in the Proxy
    Sent to devices over the air
    TSP can create multiple rules for each zone
  • Charge Reports
    ISO 17575-1
    Data Aggregation
    Sent to TSP through push API
Illustration of a gray arrow for basic services such as over-the-air updates, remote configuration, device management, etc.
  • Over the air Update
    Remote SW Updates for the devices installed in the field
  • Remote Config
    Update, change and apply new settings to the devices
  • Device Management
    Visualize and automatic provision of the devices
  • SIM Management
    Activation, deactivation, data consumption and reports
  • API Integration
    Custom 3rd party integration for services enrichment
  • Analytics
    Evaluation of platform usage
  • Data Forwarding
    Package forwarding to designed customer server
  • Secure Communication
    End to end encryption with TLS and certificates
  • Health Status
    Constant field monitoring for maximum uptime
  • Protocol customization
    Communication setup with customer specific devices
  • Logging
    Comprehensive logging for bug fixing and device improvement

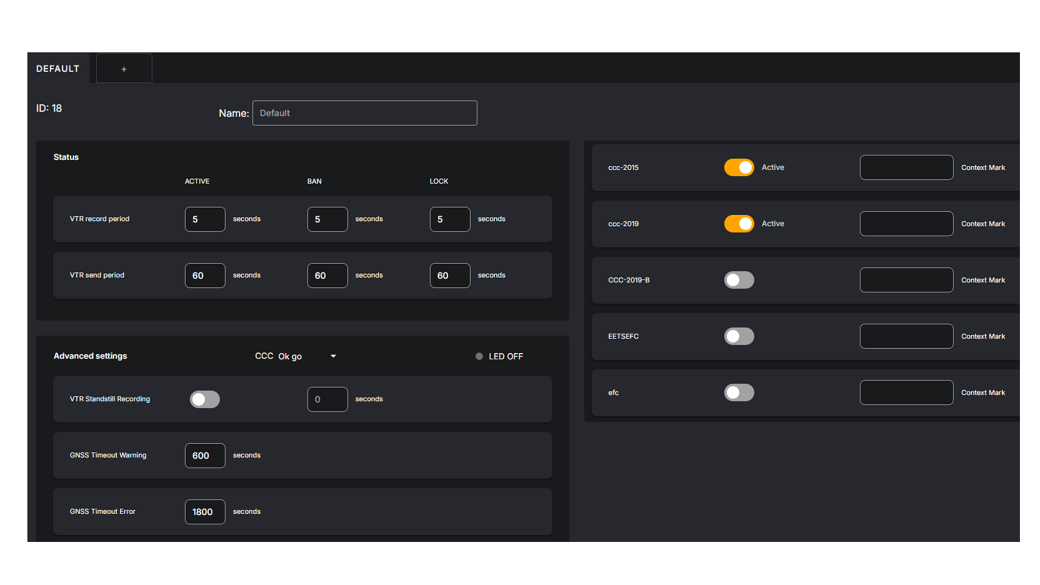

Configure zone rules from the proxy:



  • Customize device behavior depending on the tolling state.
  • Create DSRC instances that fit needs for EFC and CCC applications
  • Edit toll domain geometry to create new zones

  • Proxy offers the capability to create    new "rules" to be applied in the future.
  • The system automatically manages the rule transition at date.

  • Add or Remove device subscription to toll domains through the proxy API and keep control of your entire fleet.
Image related to AUMOVIO Tolling Cloud Proxy. AUMOVIO Tolling Cloud Proxy is based on a modular SOA architecture that includes base services and APIs like over-the-air updates, remote configuration or device management, but also offers tolling-specific components like DSRC management, zone geometry or charge reports.
