    Battery management system 12V Li-Ion

    The battery management system (BMS) is typically used for auxiliary Li-Ion batteries in battery electric vehicles (BEV). The BMS is integrated into the housing of the battery.

    The BMS

    • measures battery current, cell voltages and cell temperatures
    • provides SOx data and diagnosis data to master-ECU via CAN
    • monitors safe operation area of battery cells
    • performs passive cell-balancing
    • is able to disconnect the battery cells pack

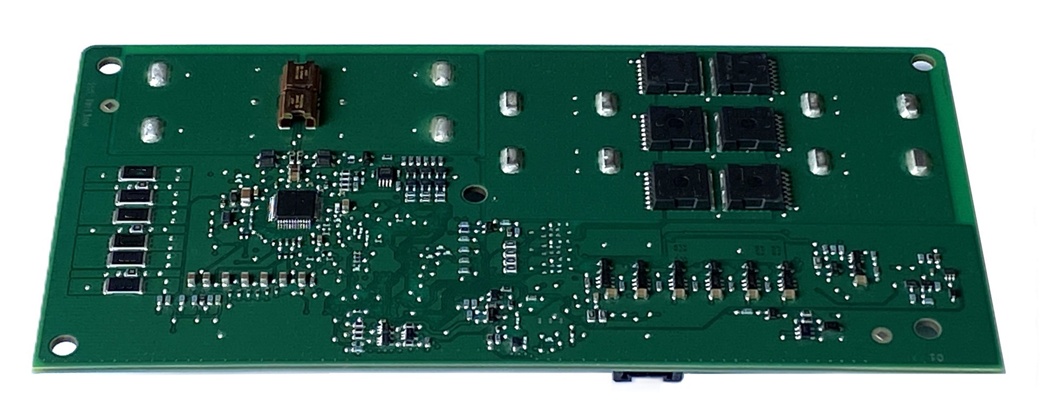

    Battery management system (BMS) 12V Li-Ion​

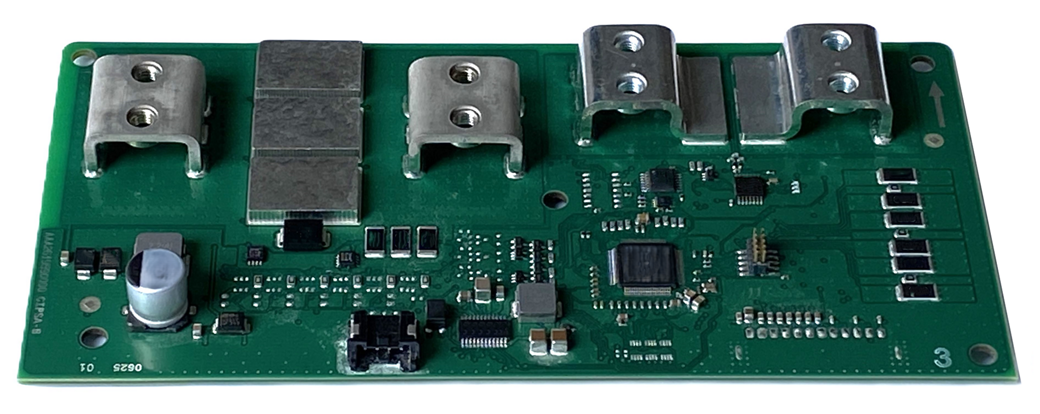

    Battery management system (BMS) 12V Li-Ion​
    Battery management system (BMS) 12V Li-Ion​
    Battery management system (BMS) 12V Li-Ion​

    Benefits & features

    • Battery cell pack disconnect possible in 4 different operating modes: increased performance related to safe energy supply
      • Full bidirectional connection which allows charging and discharging
      • Charging blocked and only discharging possible
      • Discharging blocked and only charging possible
      • Full interrupt, charging and discharging blocked
    • Short-circuit proof in accordance with hardest OEM requirements
    • Supports up to ASIL C on battery level

    Technical data

    • Current carrying capacity for A-sample:
      • 230 A constant current 1
      • 500 A for 0.15 sec 1
    • Current measurement accuracy : ± 1 %
    • CAN FD communication interface
