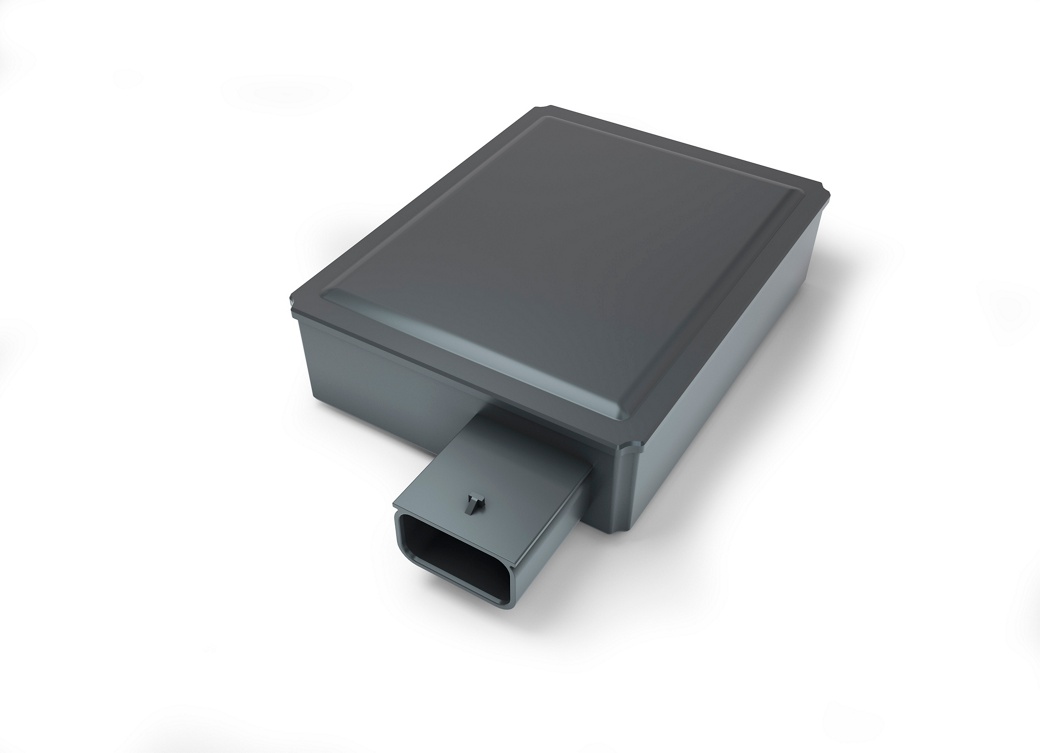

The SRR600 represents the next generation of 77 GHz short‑range radar sensors, delivering high performance for corner‑position applications, including NCAP‑relevant functions, at competitive cost.
Its compact form factor enables easy integration and ensures robust operation behind a wide range of painted bumper materials. The SRR600 supports diverse vehicle E/E architectures through its availability as both a smart radar and a satellite radar, complemented by flexible communication interfaces. The product family is scalable, ranging from the NCAP‑focused entry variant SRR620 to the premium‑class SRR630, enabling OEMs to address different performance and cost requirements within a unified platform.
Benefits & features
- Classical safety function such as BSD / LCA / BSIS / RCTA + AEB support / TMA / OSE²
- HBM mode³ for parking function enablement, elevation measurement with optimized FoV for near-range applications
- Offers optional fusion capability for networks
- Cyber security (HSM+), ASIL-B
- Smart interference suppression
- Mounting positions front/rear corner and side (b-pillar)
- Output: RDI, object list, free space; interface: 100 Mbps Ethernet (w/ MACsec), CAN-FD
Technical data
- Dimensions: 70 x 55 x 20 mm
- Range: 200m
- Field of view: ±81°
- Accuracy for speed measurment: ± 0.07 kph
- Temp. range: -40° to +85° C
- Supply voltage: 12V (nominal)
- Operation freq.: 76…77 GHz
