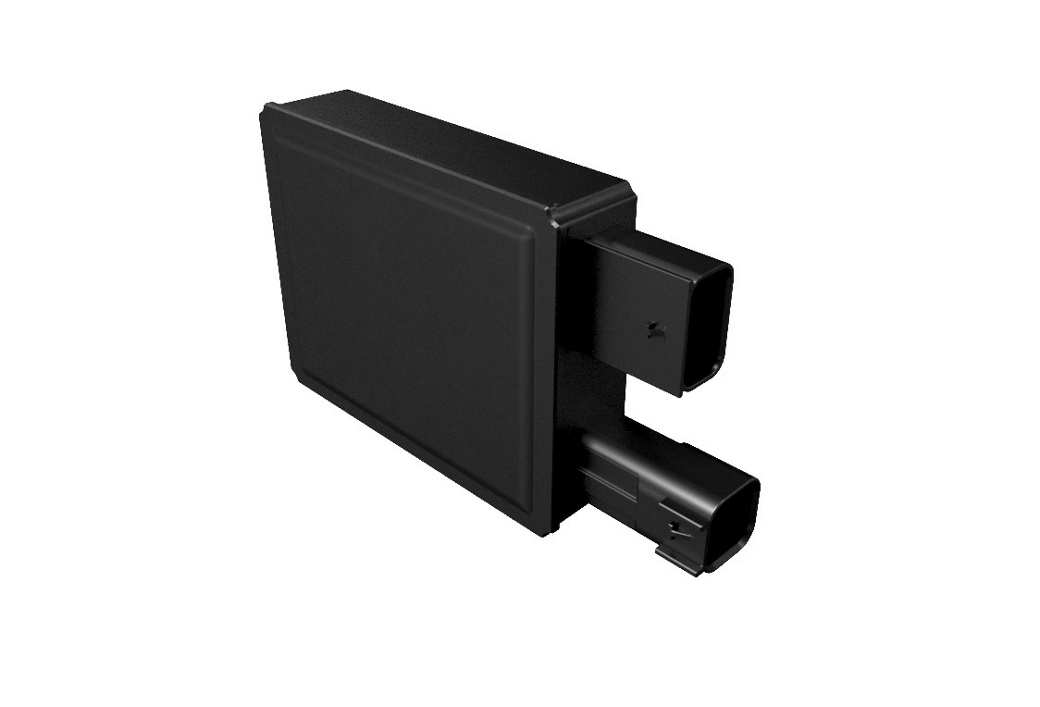

The ARS620 is our next-generation 77 GHz front radar that offers high performance for predictive applications (including NCAP support) at an affordable price.
It shares a platform with generation 6 surround radar sensors and enables effort and cost saving potentials in system deployment. In addition, it supports different vehicle architectures through its availability as RDI satellite radar as well as flexible communication interfaces.
Benefits & features
- Object list, free space
- Radar-only ACC/EBA1 support with functional flags
- RDI (Radar Detection Interface acc. to ISO 23150)
- Primary configuration as RDI sensor providing input to external fusion and function host
- Mounting positions front and rear
- CAN-FD, Ethernet
- Cyber security (HSM+), ASIL-B
- Smart interference suppression
Technical data
- Dimensions: 70 x 55 x 20 mm
- Range: 280 m
- Field of view: ± 66°
- Accuracy of the speed measurement: ± 0.08 kph
- Temp. range: -40° to +85°C
- Operation freq: 76…77 GHz
