    SSR630 & LSR630

    Satellite radar sensors

    The 77 GHz surround and long‑range satellite radar sensors (SSR/LSR) are based on the proven Generation 6 radar platform and are engineered to deliver high system performance in next‑generation vehicle architectures.

    Designed for operation with a centralized control unit, these satellite radars enable a shift from sensor‑level intelligence to centralized radar processing, supporting scalable system design, efficient integration, and advanced ADAS and automation functions.

    Benefits & features

    • Radar head providing input to external fusion and function host
    • Raw data output enabling low-level data fusion
    • Less than one radar cycle system latency
    • High range coverage and angular accuracy
    • SSR provides mode for 79 GHz-Synthetic Aperture Radar for highest resolution near field perception
    • Elevation measurement capability
    • Blockage detection / auto alignment
    • Highly sophisticated interference mitigation concept for maximum robustness against interference from foreign and internal sources (up to 10 different radar sensors per car)
    • Powerful EVITA full security hardware
    • Safety integrity level according to ISO 26262: ASIL-B
    • Frequency approval compliance for following core countries - European Union / USA / Canada / Japan / South Korea / China / Australia

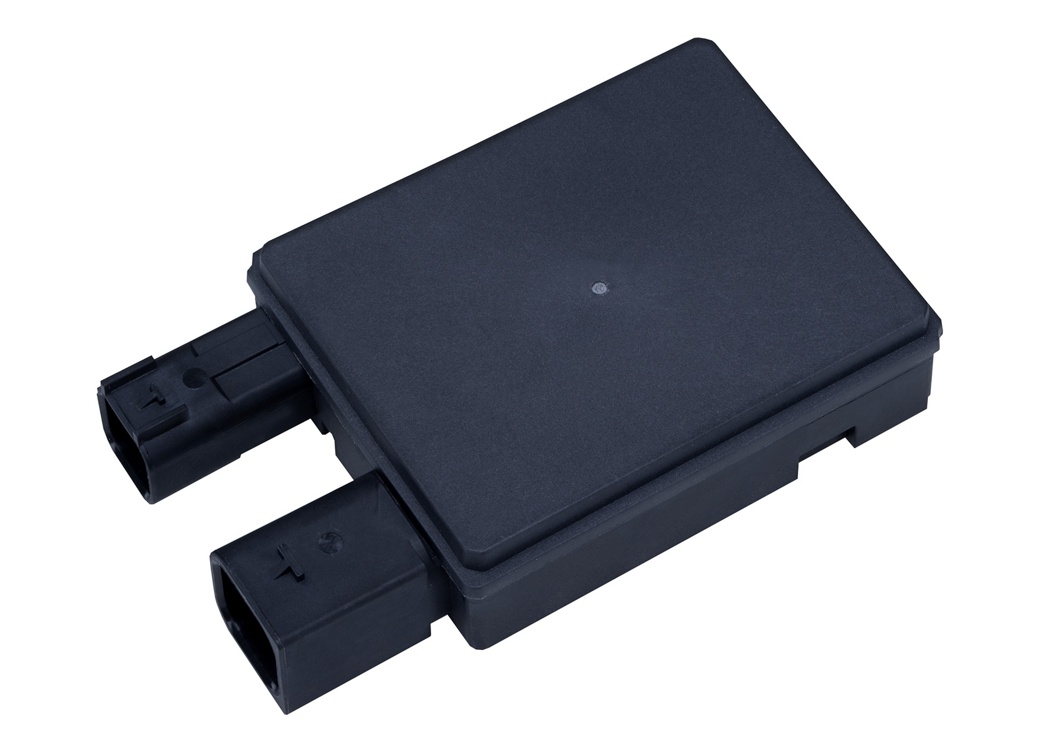

    Satellite Radar Sensors – SSR630 & LSR630

    Technical data

    • Dimensions: 70 x 55 x 20 mm (w/o connector)
    • Range (LSR630): 280 m (car, motorcycle); 175 m (pedestrian)
    • Range (SSR630): 200 m (car, motorcycle); 105 m (pedestrian)
    • Field of view: ±66° (LSR630); ±81° (SSR630)
    • Communication interfaces: 1Gbps / 100 Mbps
    • Update Rate: 50 ms
    • Accuracy of the speed measurement (determination done on central ECU)
    Satellite Radar Sensors – SSR630 & LSR630
