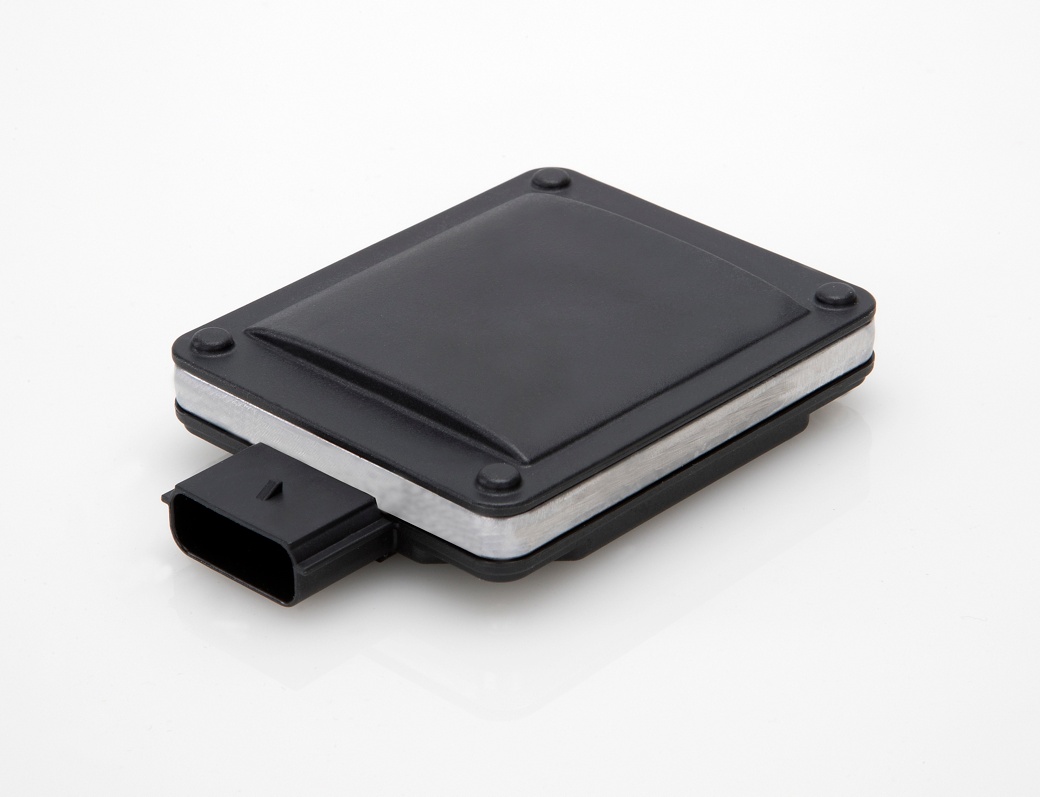

SRR52x is a high-performance 77 GHz short-range radar sensor for various premium backward and forward-looking applications. Its small package can be integrated flexible and robust behind several kinds of painted bumpers.
Benefits and features
- Object list / blind spot warning / lane change assist (Type IIIc) / rear cross traffic alert (with braking) / front cross traffic alert (with braking) / rear pre-crash sensing / occupant safe exit / avoidance of lateral collision
- Blockage detection / auto alignment
- LED driver / up to two mountside IDs
- Ethernet interface
- Safety integrity level according to ISO 26262: up to ASIL-B
- Frequency approval compliance for following core countries: European Union / USA / Canada / Japan / South Korea / China / Australia
Technical data
- Dimensions: 83 x 68 x 22 mm (w/o connector)
- Mass: ~135 g
- Range: 100 m @ 0°
- Field of view: ± 90° detection / ± 75° measurement
- Update rate: 50 ms
- Speed meas. acc.: ± 0.07 kph
- Temp. range: -40° to +85°
- Power dissip.: 4.2 W
- Supply voltage: 12 V
- Operation freq.: 76…77 GHz
