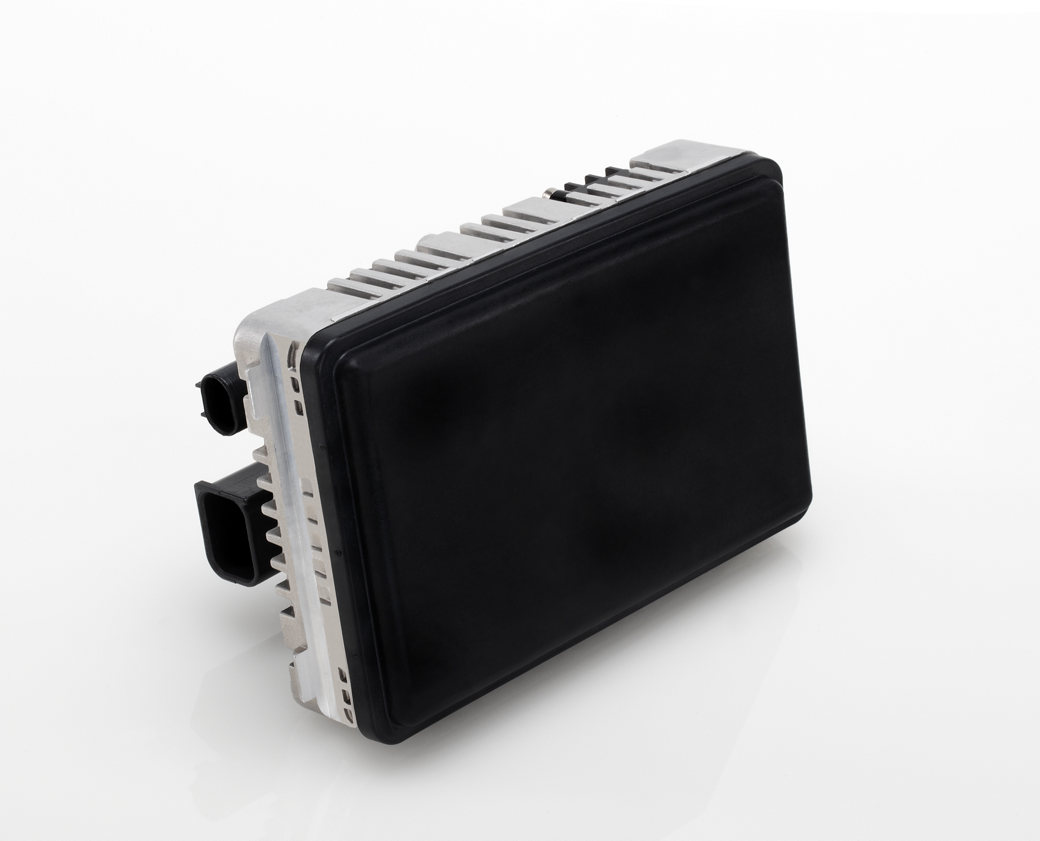

ARS540 is a high performance 4D premium long range radar sensor which enables highly automated driving in combination with other technologies.
It provides best radar performance for critical use cases in urban and highway scenarios. The ARS540 provides high range and angular accuracy as well as improved processing power and algorithms compared to standard ARS5/6 radars.
Benefits & features
- Highly automated driving
- Direct and independent measurement of four dimensions (range, doppler, azimuth, elevation)
- 300 meter range for various targets
- Real height measurement
- Multi-hypothesis tracking for better prediction of high complexity scenarios
- Classification of traffic participants and infrastructure
- Radar-only VRU detection by means of micro-doppler technology
- Auto alignment
- Highest availability of all ADAS technologies
- Cyber Security
Technical data
- Dimensions: 137 x 90 x 39 mm (w/o con.)
- Mass: ~500 g
- Range: 300 m
- Field of View: ± 60°
- Angular accuracy: ±0.1° in azimuth and elevation
- Update Rate: 60 ms
- Temp. Range: -40° to +85°
- Power Dissip.: ~23 W
- Supply Voltage: 12 V (nominal)
- Operation Freq.: 76…77 GHz
